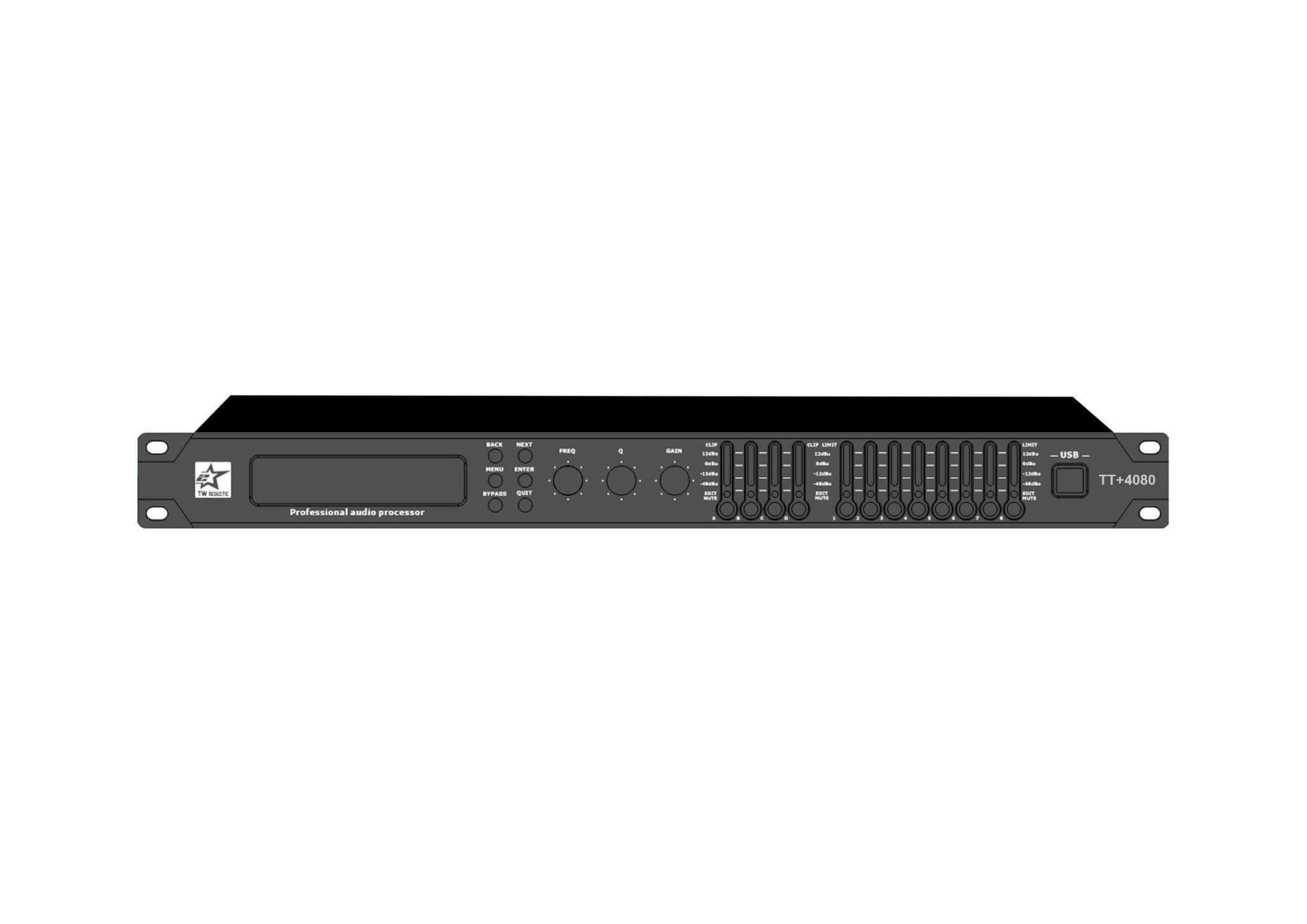

TT+4080

Thông số kỹ thuật:

Signal processing： ADI SHARC 21489
Audio system delay： 2.8ms
Digital to Analog Conversion：24-bit
Sampling Rate： 96kHz

ANALOG AUDIO INPUTS AND OUTPUTS
Input channel：4 balanced inputs. Line level
audio port： The head of the male and female XLR
input resistance：22kΩ
Maximum input level：16dBu/Line
Output channel： 8 balanced outputs, line level
Output impedance：150Ω

AUDIO PERFORMANCE SPECIFICATIONS
Frequency response curve： 20Hz-40kHz(±0.5dB)/Line
Digital Noise Floor： 20Hz-20kHz，A-wt,-93dBu
THD+N： -90dB(@0dBu,1kHz,A-wt)/Line
Signal-to-noise ratio：108dB(@16dBu,1kHz,A-wt)/Line

ELECTRICAL AND PHYSICAL
Power supply： AC90V—264V  50/60 Hz
Size (L * W * H): 483*215*44.5mm
Net Weight: 3.2kg
working temperature: -20℃–80℃”
